産品簡介：
Product introduction:
Leetop_ALP_203_F2是基于英伟达Xavier NX/TX2 NX/NANO 核心闆 研發的一款嵌入式人工智能計算機，能夠为衆多終端設備賦予高达21TOPS /1.33 TFLOPS/472 GFLOPS的計算力。Jetson Xavier NX可以和NVIDIA 強大的AI软件堆棧/SDK及软件平台相結合，作为高性能低功耗的嵌入式邊 緣計算設備，主要應用于制造、物流、零售、服務、農業、智慧城市、醫 療保健、生命科學等領域的先進人工智能機器人、邊緣檢測設備和AI應用 场景. Leetop_AL P_203_F2提供快速的主動散热設計，可以滿足抗震防静 電等工業标準。同时L eetop_ALP_203_F2接口豐富性價比高。
Leetop_ ALP_ 203_ F2 is an embedded artificial intelligence computer developed based on the NVIDIA Xavier NX/TX2 NX/ NANO core module, which can provide up to 21TOPS/1.33 TFLOPS/ 472 GFLOPS of computing power to numerous terminal devices. Jetson Xavier NX can be combined with NVIDIA's powerful AI software stack/SDK and software platform. As a high- performance and low-power embedded edge computing device, it is mainly used in advanced AI robots, edge detection equipment and AI application scenarios in manufacturing, logistics, retail, service, agriculture, smart city, healthcare, life science and other fields. Leetop_ AL P_ 203_ F2 provides a fast active heat dissipation design that can meet industrial standards such as seismic and anti- static performance. At the same time, L eetop_ ALP_ 203_ The F2 interface is rich and cost-effective.
産品規格 Product specification：
處理器模块 Processor module：
| Jetson Xavier NX | Jetson Xavier NX 16GB | |
| AI Performance | 21 TOPS | |
| GPU | 384-core NVIDIA Volta ™ GPU with 48 Tensor Cores | |
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 | |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 |22x1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 |20x108p30 (H.264) | |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x1080p60 | 44x 1080p30 (H.265) 2x 4K60 | | |
| Memory | 8 GB 128-bit LPDDR4x59.7GB/s | 16 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 * | |
Jetson NANO | Jetson TX2 NX | |
AI Performance | 472 GFLOPS | 1.33 TFLOPS |
GPU | 128-core NVIDIA Maxwell™ architecture GPU | 256-core NVIDIA Pascal™ architecture GPU |
CPU | Quad-Core Arm® Cortex®-A57 MPCore processor | Dual-Core NVIDIA Denver 2 64- Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor |
Video Encode | 1x 4K30 (H.265) 2x 1080p60 (H.265) | 1x 4K60 (H.265) 3x 4K30 (H.265) 4x 1080p60 (H.265) |
Video Decode | 1x 4K60 (H.265) 4x 1080p60 (H.265) | 2x 4K60 (H.265) 7x 1080p60 (H.265) 14x 1080p30 (H.265) |
Memory | 4GB 64-bit LPDDR4 25.6GB/s" | 4GB 128-bit LPDDR4 51.2GB/s |
Storage | 16 GB eMMC 5.1 * | 16 GB eMMC 5.1 |
産品規格 Product specification：
| Interface | Specification |
| Network | 1 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 2x USB 3.0 Type A (Integrated USB2.0)1X USB 3.0 1x USB 2.0 Micro-AB |
| Video output | 1✖HDMI |
| SIM Card | 1x SIM Card |
| CAN | 1 × CAN |
| RS232 | 1x RS232 |
| TF_Card | 1xTF_Card |
| Function key | 1xReset key; 1x Recovery key |
| Project | Specification |
| Input Voltage | +9V to +19V DC Input @ 3A |
| Load capacity | Above 60W |
Dimensions (W×D ×H) | 94x92x51 (mm) |
Operating Temperature | -25℃-65℃ 0.2~0.3m/airflows |
Storage Temperature | -20℃-60℃ |
| Weight | 0.390KG |
尺寸示意图 ：
Schematic diagram of dimensions：

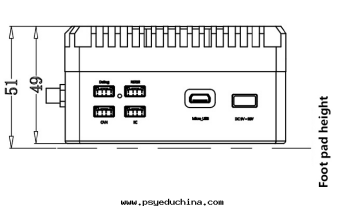

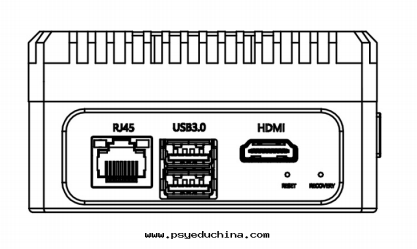

| 正視图 Front view | 左視图 Left view |
 |  |

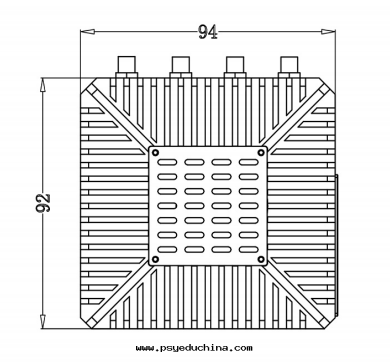

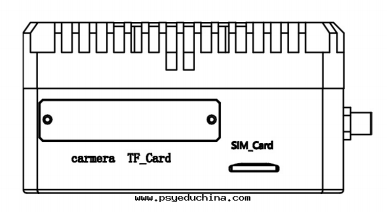

| 俯視图 Up view | 右 視 图 Right view |
 |  |
