産品簡介：
SUB kit-603 orin nx（16G）是由A603载板+Orin Nx 核心板研發的 一款嵌入式人工智能计算机，能夠为衆多終端設備賦予高达70/100TOPS 的计算力。SUB kit-603 orin nx（16G）提供快速的主/被动散热設 计，可以滿足抗震防静電等工業标準。同时尺寸小，接口豐富，性價比 高。
SUB kit-603 orin nx (16G) is an embedded artificial intelligence computer developed on A603 carrier board and Orin Nx core board, which can provide up to 70/100TOPS of computing power to many end devices. SUB kit-603 orin nx (16G) provides a fast active/passive heat dissipation design that meets industry standards such as seismic and electrostatic resistance. At the same time, small size, rich interface, high cost performance.
産品規格：
處理器模块:
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
| POWER | 10W-20W | 10W-25W |
接口I/O：
| 接 口 Interface | 規格 Specification |
| Network | 1 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 2x USB 3.0 Type A (Integrated USB 2.0) 1x USB 3.0 0.5mm pitch 20P ZIF 1x USB 2.0 Micro-AB |
| Video output | 1 × HDMI |
| CAN | 1 × CAN |
| I2S | 1 × I2S(3.3V Level) |
| M.2 KEY E PCIE | 1 × PCIE 2230 SIZE |
| M.2 KEY M | 1 × M.2 KEY E Interface(NVMe SSD)2242 |
| Camera | 1 × CSI CAMERA |
供電 Power Supply：
| Power Supply | Spec |
| Input Voltage | +9--+20V DC Input @7A |
| Typical consumption | 60W |
結構 Mechanical：
| Mechanical | Spec |
| Dimensions (W×D ×H) | 87× 52x46.1 (mm) |
| Weight | 0.145KG |
环境 Environmental：
| Environmental | Spec |
| Operating Temperature | -20℃-65℃ 0.2~0.3m/s气流 |
| Storage Temperature | -20℃-60℃ |
| Storage Humidity | 10%-90% non-condensin g非結露环境 |
尺寸示意图 Schematic diagram of dimensions：

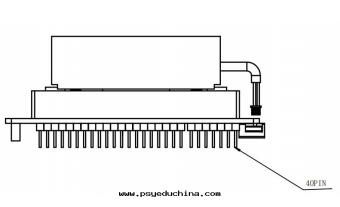

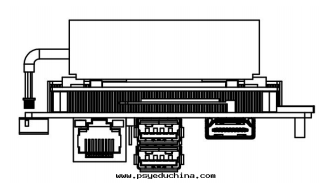

| 正视图 Front view | 右视图 Right view |
 |  |

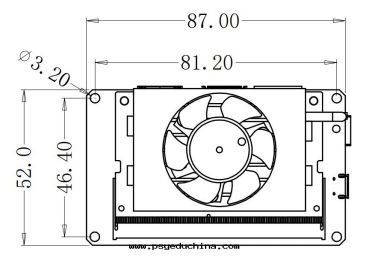

| 俯视图 Up view | 後视图 Rear view |
 |  |
