産品特點
産品功能
産品簡介：

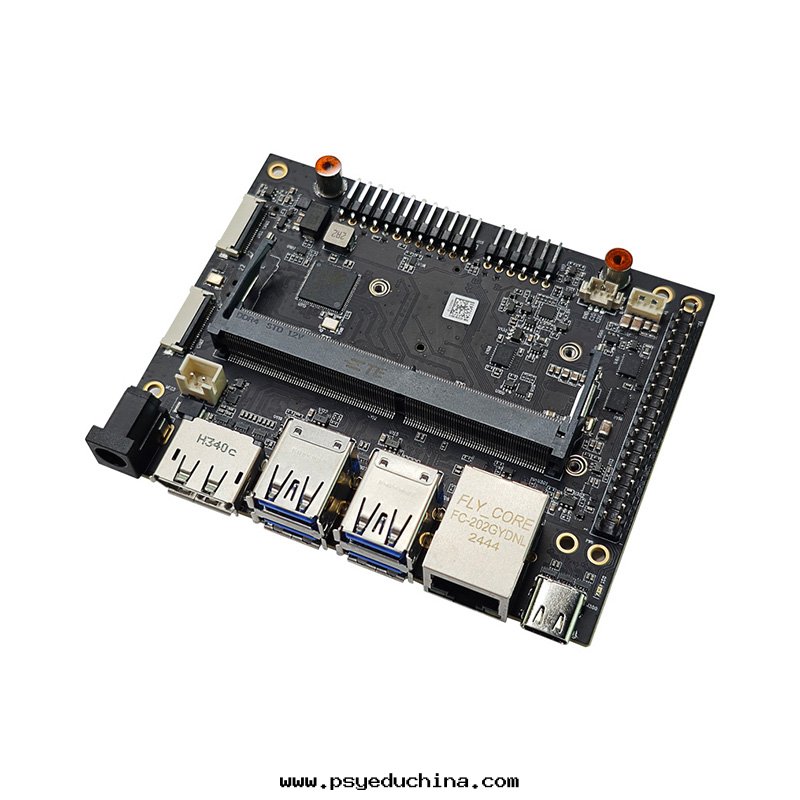

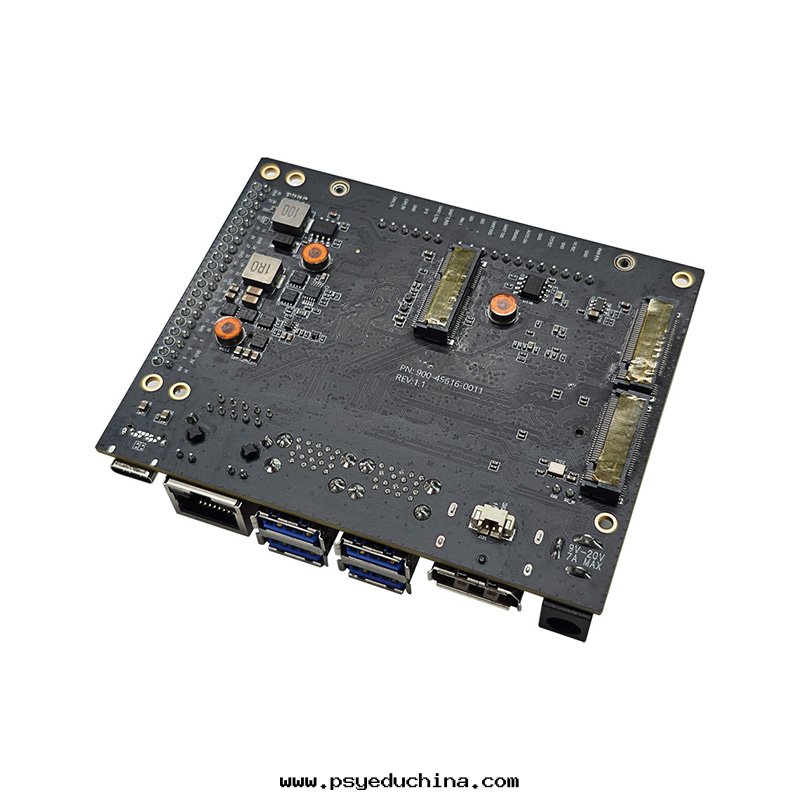

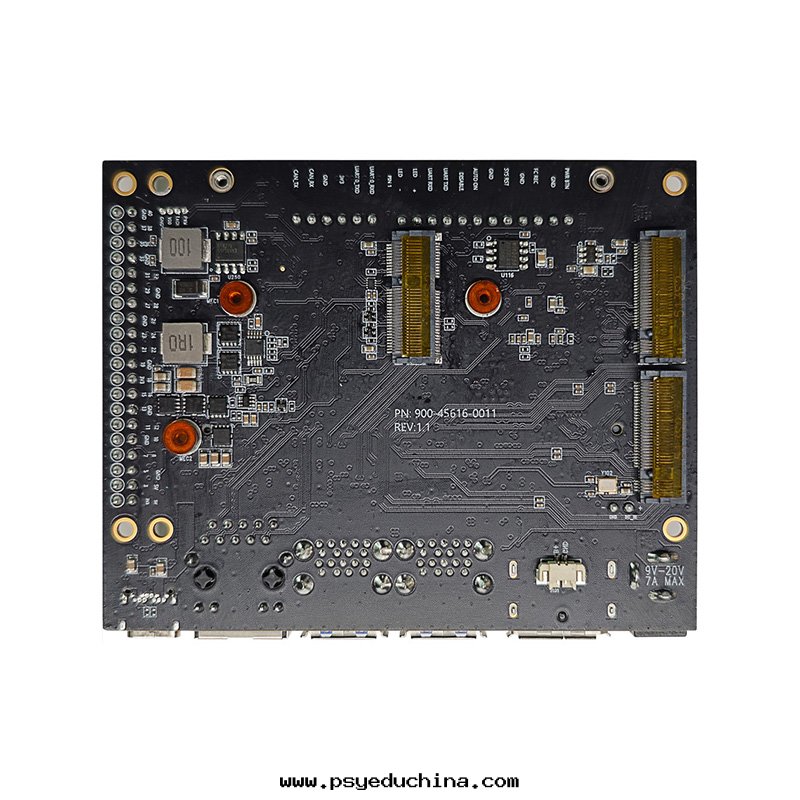

Leetop_A618是一款基于英伟达 Orin Nano/Orin NX 模組研發的高性能、功能豐富的载 闆。其設計賦予終端設備高达 34/67/117/157 TOPS 的強大算力，同时提供豐富的外圍接口，适 應多樣化的應用需求。Leetop_A618 在人工智能、 邊緣計算和智能機器人等領域表現出色，無論是快 速開發還是大規模部署，都能为開發者提供高效、 穩定的解決方案。此外，該载闆符合抗震、防静電 等工業級标準，确保在嚴苛环境中的可靠性与穩定 性。
産品規格 ：
處理器模块 ：
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 117 TOPS | 157 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | |
| CPU | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 (H.265)；3x 4K30 (H.265) 6x 1080p60 (H.265)；12x 1080p30 (H.265) | |
| Video Decode | 1x 8K30 (H.265)；2x 4K60 (H.265) 4x 4K30 (H.265)；9x 1080p60 (H.265) 18x 1080p30 (H.265) | |
| Memory | 8GB 128-bit LPDDR5 102.4GB/s | 16GB 128-bit LPDDR5 102.4GB/s |
| Power | 10W - 15W - 25W - 40W | 10W - 15W - 25W - 40W |
| Storage | — (Supports external NVMe) | |
| Jetson Orin Nano 4GB | Jetson Orin Nano 8GB | |
| AI Performance | 34 TOPS | 67 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | |
| Video Encode | 1080p30 supported by 1-2 CPU cores | |
| Video Decode | 1x 4K60 (H.265)；2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | |
| Memory | 4GB 64-bit LPDDR5 51 GB/s | 8GB 128-bit LPDDR5 68 GB/s |
| Power | 7W - 10W - 25W | 7W - 15W - 25W |
| Storage | — (Supports external NVMe) | |
産品規格 ：
| Project | Specification |
| Module Compatibility | Jetson Orin NANO/Orin NX |
| Display | 1x DP |
| Ethernet | 1x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.2 Type A (Integrated USB 2.0) 1x USB 2.0+3.2 Type C |
| M.2 KEY M | 2x M.2 KEY M (SSD;SIZE:2230/2280) interface |
| M.2 KEY E | 1xM.2 KEY E(WIFI) interface |
| Camera | 2 x 4 lane csi camera |
| FAN | 1xFAN(5V PWM) |
| CAN | 1xCAN |
| RTC CON | 1x3.0V RTC |
| Function CON | 2x SPI BUS；2x I2C； 2x UART；1xI2S; 6x GPIO； |
| DC | Power interface |
| Project | Specification |
| Input Voltage | +9V ---+20V (MAX 60W) DC Input |
| Load capacity | Above 60W |
| Dimensions (W×D ) | 100x79(mm) |
| Operating Temperature | -25℃-65℃ |
| Storage Temperature Humidity | -25℃-65℃ 10% -90% Non condensation environment |
