産品簡介：
Product introduction:

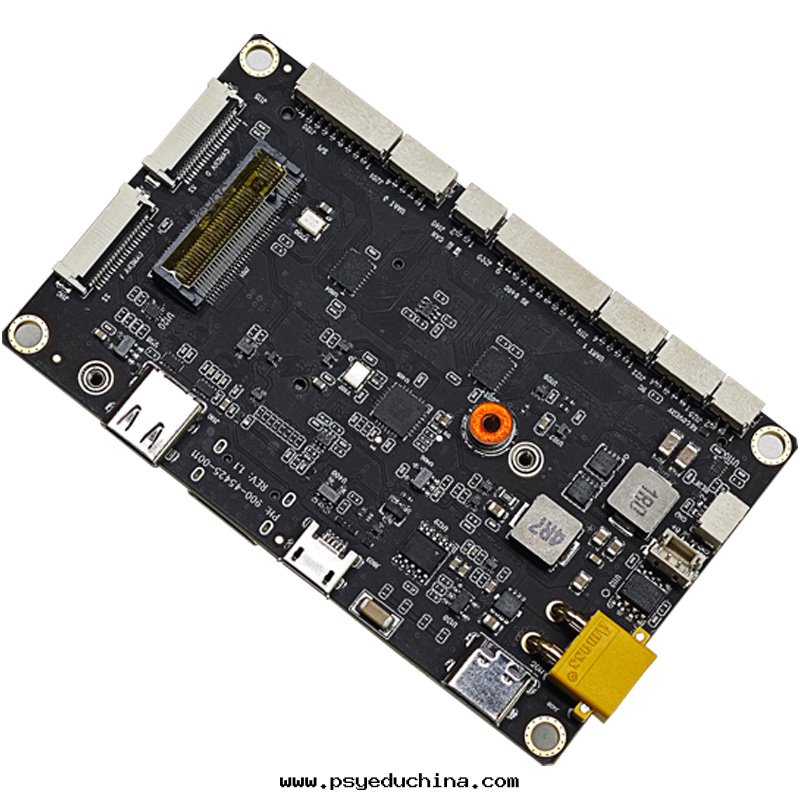

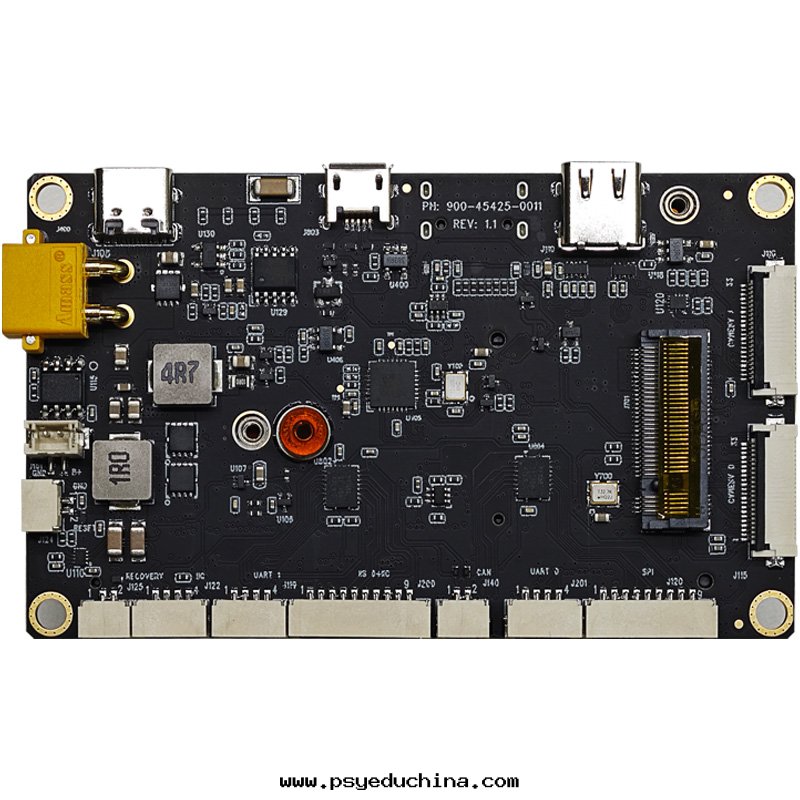

Leetop_A615是基于英伟达Orin NANO/Orin NX核心板 研發一款高性能载板。 Leetop_A615载 板具有豐富的接口， 並能为的衆多終端設備賦予高 达20/40/70/100TOPS算力。 此外Leetop_A615提 供豐富的外围接口。 符合抗震防静電等 工業标準。
Leetop_A615 is a high-performance carrier board developed based on NVIDIA Orin NANO/Orin NX core moudles.
Leetop_A615 carrier board has a variety of interfaces and can provide up to 20/40/70/100TOPS computing power for many terminal devices. In addition, Leetop_A615 provides a variety of peripheral interfaces. It meets industrial standards such as anti-vibration and anti-static.
産品規格 Product specification：
處理器模块 Processor module：
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere 1025-GPU with 32 Tensor Cores | |
| CPU | 6 -core NVIDIA Arm® CortexA78AE v8.2 64-bit CPU 1.5MBL2 + 4MB L3 | 8 -core NVIDIA Arm ® Cortex A78AE v8.2 64-bit CPU 2MB L2+ 4MB L3 |
| Video Encode | 1x4K60 | 3x4K30 | 6x1080 p60 | 12x1080 p30(H.265) 1x4K60 | 2x4K30 | 5x1080p60 | 11x1080p30 (H.264) | |
| Video Decode | 1x8K30 | 2x4K60 | 4x4K30 | 9x1080p60 | 18x1080p30 (H.265) 1x4K60 | 2x4K30 | 5x1080p60 | 11x1080p30 (H.264) | |
| Memory | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4GB/s |
| Storage | — (Supports external NVMe) | |
| Jetson Orin Nano 4GB | Jetson Orin Nano 8GB | |
| AI Pe rformance | 20 TOPS | 40 TOPS |
| GPU | 512-core NVIDIA Ampere Core | 1024-core NVIDIA Ampere |
| CPU | 6-core Arm® Cortex ®-A78AE v8.2 64-bit | |
| Video Encode | 1080p30 supported by 1-2 CPU cores | |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | |
| Memory | 4GB 64-bit LPDDR5 34 GB/ | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | — (Supports external NVMe) | |
産品規格 ：
Product specification：
| Project | Sp ecification |
| Module Com pa tibility | Jetson Orin NANO/Orin NX |
| Display | 1x MINI HDMI |
| Etherne t | 1x Gigabit Ethernet (10/100/1000) |
| USB | 1x USB 3.2Type C；1x USB 2.0Type C； USB_FPC 0.5mm pitch 20Pin 1x Micro USB2.0(Debug)； 1x Micro USB2.0（Download |
| NVME | 1x _067_SMT_M.2 KEY M；PCIE接口， (SSD;SIZE:2242 |
| WIFI;Bluetooth | 1x 067_M.2 KEY E_C； PCIE 接口，( SIZE:2230) ； |
| Camera | 2x CSI Camera（4 lane） |
| I2S | 1xI2S(3.3V Level) |
| CAN | 1xCAN |
| Misc. | 3x GPIO；2x UART； 1x SPI；2x I2C ； 1x SYS_RST ； 1x RECOVERY |
DC/USB 2.0_TYPE C | Power interface |
| Input Voltage | +9V ---+20V DC Input @ 60W |
| Load capacity | Above 60W |
| Dimensions (W×D ) | 87x52 (mm) |
| Operating Temperature | -25℃-70℃ |
Storage Temperature Humidit | -25℃-65℃ 10% -90% Non condensation environment |
注：有2个電源輸入口，其中一个是TYPE C接口，一个是航模接 口，接入其中一个即可，當用航模接口供電时，这个TYPE C 供電的接口不可連接其它設備，以免有反向供電導致燒壞設 備的風險。TYPE C供電接口可使用有20V檔位的智能快充适 配器供電，也可用固定輸出電壓的TYPE C接口電源供電.
