産品簡介：
Product introduction：
Leetop_B100是基于RDK X3模组設计的一款全功能開 發板。是一款其具豐富外設接口，高性能的智能载板。RDK X3模组搭载地平線旭日®3系列高性能的智能芯片，提供強 大的端側通用與人工智能算力。
Leetop_B100 is a full-featured development board designed based on the RDK X3 module. It is an intelligent carrier board with rich peripheral interfaces
and high performance.The RDK X3 module is equipped with Horizon Rising Sun® 3 series high- performance smart chips, providing powerful end-side general-purpose and artificial intelligence computing power.
産品規格 ：
Product specification：
| Project | Specification |
| Module Compatibility | RDK X3 Moudle |
| Display | 1x HDMI |
| Ethernet | 1x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0 2x USB 2.0(1xDebug;1xMicro USB |
| Audio | 2x SPEAKER; 1x Audio jack |
| Camera | 3x CSI Camera(2x2_lane; 1x4_lane) |
| FAN | 1xFAN(5V PWM) |
| RTC CON | 1x3.0V RTC |
| Function con | 11x GPIO; 1x I2C; 1xSPI; 1x SPK_R; 1x SPK_L |
| DC | Power interface |
| Input Voltage | 12V(MAX 35W) DC Input |
| Load capacity | Above 35W |
| Dimensions (W×D ×H) | 100X79 (mm) |
| Operating Temperature | -20℃-60℃ |
Storage Temperature Humidit | -20℃-60℃ 10% -90% Non condensation environment |
| Weight | 0.0587KG |
産品規格 Product specification：
處理器模块 Processor module：
RDK X3 Moudle 主要包含四核Cortex®A53處理器、5Tops算力、最高4GB內存且支持4K@60幀视頻編解；主要接口包括 HDMI、千兆以太网、USB 3.0、USB2.0、MIPI CSI、UART Debug、TF 卡接口等。
模组搭载双頻 2.4/5.0GHz 無線局域网和藍牙 4.2 模块，單板上已具備 PCB 天線，同时也可以搭配外部天線套件使用，能夠實現無線連接，降低用戶開發和 測試成本，縮短上市时間。
RDK X3 Module 可選的板载 RAM 容量包括 2GB、4GB。
RDK X3 Moudle mainly includes a quad-core Cortex® A53 processor, 5Tops computing power, up to 4GB memory and supports 4K@60 frame video encoding and decoding; the main interfaces include HDMI, Gigabit Ethernet, USB 3.0, USB2.0, MIPI CSI, UART Debug, TF card interface, etc.
The module is equipped with dual-band 2.4/5.0GHz wireless LAN and Bluetooth 4.2 modules. The board already has a PCB antenna and can also be used with an external antenna kit to achieve wireless connections, reduce user development and testing costs, and shorten time to market.
The optional onboard RAM capacities of RDK X3 Module include 2GB and 4GB.

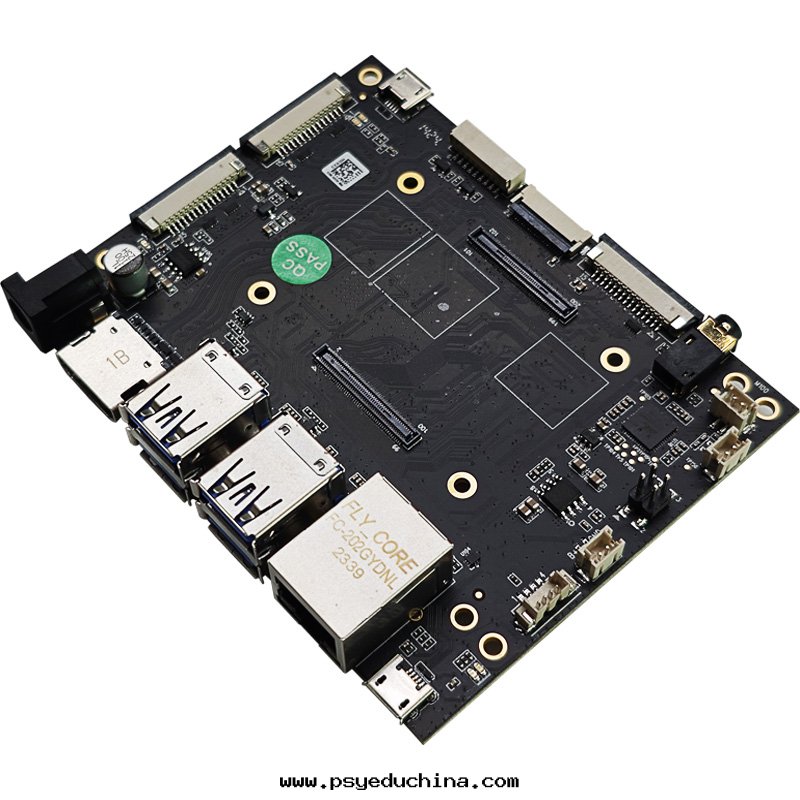

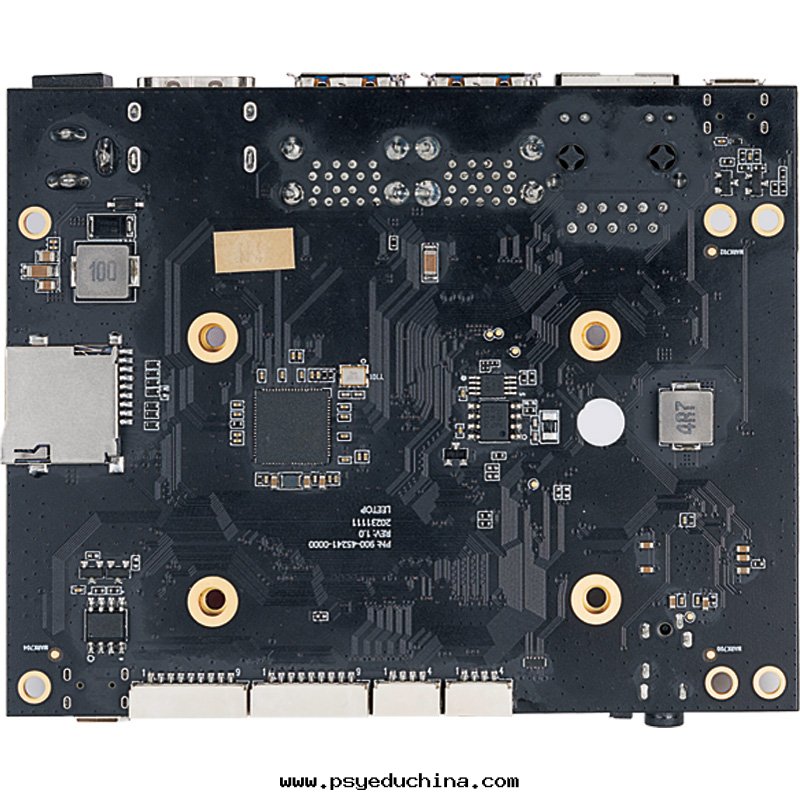

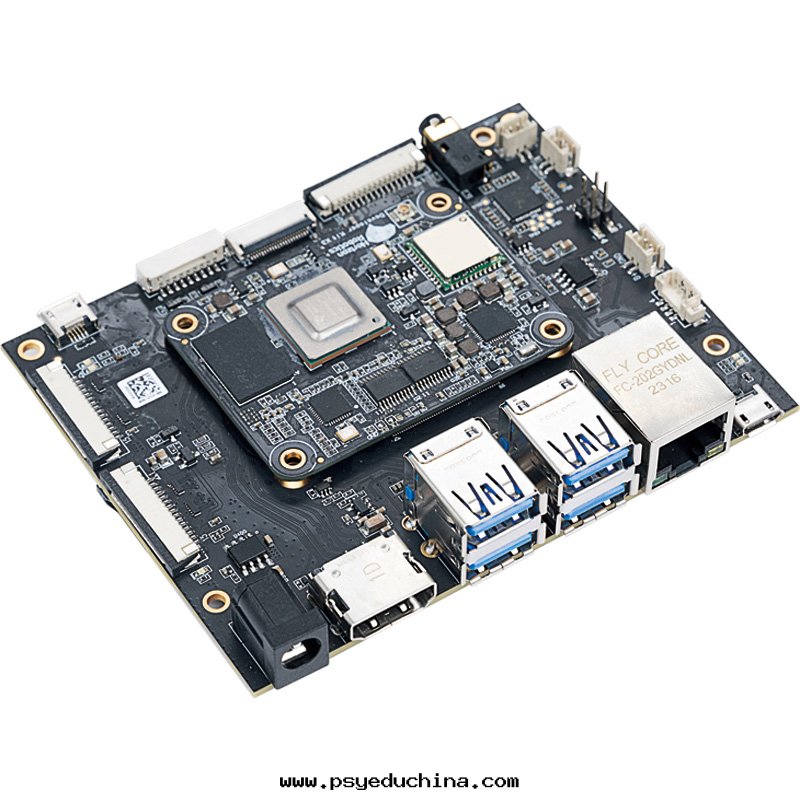

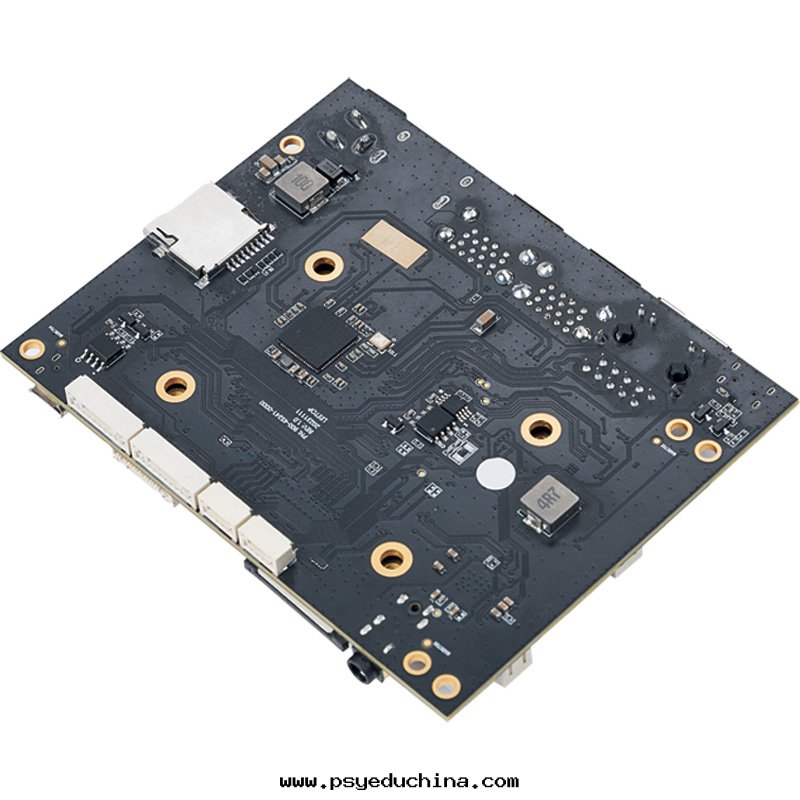

産品外觀：
Product appearance：

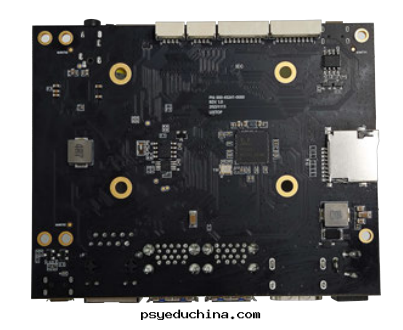

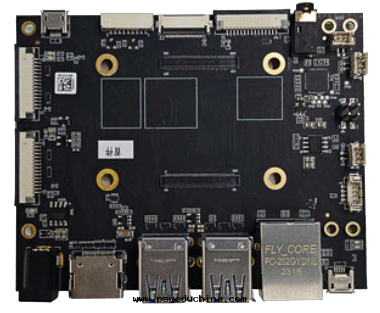

| 正面 Front interface | 背面 Back interface |
|
|
