産品簡介：
Product introduction:
Leetop_B100_Kit是一款設计獨特、性能卓越的開發套件，搭载了強大的RDK X3模组。其推理算力高达5 Tops， 同时搭载了4核ARM Cortex®A53處理器，为用戶提供卓越的 计算性能。支持3路CSI Camera接口，使其适用于各種视覺應用。 此外，Leetop_B100_Kit還配備了4路USB3.0接口和2路USB2.0 接口，为用戶提供多樣化的外設連接選项，充分滿足各类场景的 使用需求。
Leetop_B100_Kit is a development tool with unique design and excellent performance The kit is equipped with the powerful RDK X3 module. Its reasoning computing power is as high as 5 Tops.It is also equipped with an 4-core ARM Cortex®A53 processor to provide users with excellent computing performance.Supports 3-way CSI Camera interface, making it suitable for various vision applications. In addition, Leetop_B100_Kit is also equipped with 4 USB3.0 interfaces and 2 USB2.0 interfaces.Provide users with a variety of peripheral connection options to fully meet the needs of various scenarios.
産品規格 ：
Product specification ：
| Project | Sp ecification |
| Module Compa tibility | RDK X3 Moudle |
| Displa y | 1x HDMI |
| Et hernet | 1x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0 2x USB 2.0(1xDebug;1xMicro USB |
| Audio | 2x SPEAKER; 1x Audio jack |
| Camera | 3x CSI Camera |
| FAN | 1xFAN(5V PWM) |
| RTC CON | 1x3.0V RTC |
| DC | Power interface |
| Input Voltage | 12V(MAX 35W) DC Input |
| Load capacity | Above 35W |
| Operating Temperature | -20℃-60℃ |
Storage Temperat ure Humidit | -20℃-60℃ 10% -90% Non condensation environment |
産品規格 Product specification：
處理器模块 Processor module：
RDK X3 Moudle 主要包含四核Cortex®A53處理器、5Tops算力、最高4GB內存且支持4K@60幀视頻編解；主要接口包括 HDMI、千兆以太网、USB 3.0、USB2.0、MIPI CSI、UART Debug、TF 卡接口等。
模组搭载双頻 2.4/5.0GHz 無線局域网和藍牙 4.2 模块，單板上已具備 PCB 天線，同时也可以搭配外部天線套件使用，能夠實現無線連接，降低用戶開發和 測試成本，縮短上市时間。
RDK X3 Module 可選的板载 RAM 容量包括 2GB、4GB。
RDK X3 Moudle mainly includes a quad-core Cortex® A53 processor, 5Tops computing power, up to 4GB memory and supports 4K@60 frame video encoding and decoding; the main interfaces include HDMI, Gigabit Ethernet, USB 3.0, USB2.0, MIPI CSI, UART Debug, TF card interface, etc.
The module is equipped with dual-band 2.4/5.0GHz wireless LAN and Bluetooth 4.2 modules. The board already has a PCB antenna and can also be used with an external antenna kit to achieve wireless connections, reduce user development and testing costs, and shorten time to market.
The optional onboard RAM capacities of RDK X3 Module include 2GB and 4GB.
尺寸示意图：
Dimensional diagram：

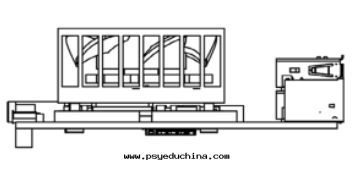

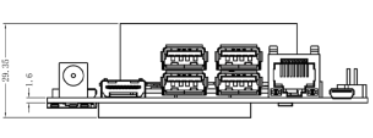

| 正视图 Front view | 左视图 Left view |
 |  |

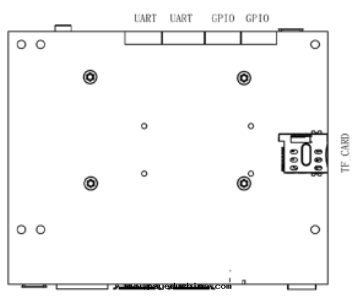

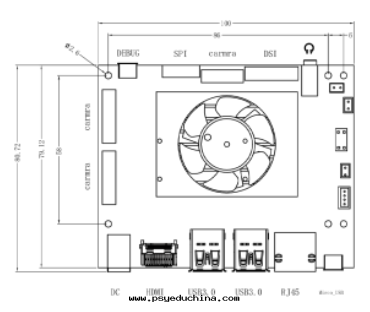

| 俯视图 Top view | 底部视图 Bottom view |
 |  |
