産品簡介：
Product introduction:
Leetop_ALP_681是基于英伟达AGX Orin 核心板研發的一款嵌入式人工智 能计算机， 能夠为衆多終端設備賦予高达200/275TOPS的计算力。 Jetson AGX Orin 可以和NVIDIA強大的AI软件堆栈/SDK及软件平台相結合，作为高性 能低功耗的嵌入式邊緣计算設備，主要應用于制造、物流、零售、服務、农業、 智慧城市、醫疗保健、生命科學等領域的先進人工智能机器人、邊緣檢測設備和 A I應用场景. Leetop_ALP_681提供快速的被动散热設计， 可以滿足抗震防静電 等工業标準。 同时Leetop_ALP_681接口豐富性價比高。
Leetop_ ALP_ 681 is an embedded artificial intelligence developed based on the NVIDIA AGX Orin core module Capable of computing, capable of providing up to 200/275TOPS of computing power to numerous terminal devices. Jetson AGX Orin can be combined with NVIDIA's powerful AI software stack/SDK and software platform for high performance Embedded edge computing equipment with low power consumption, mainly used in manufacturing, logistics, retail, service, agriculture Advanced artificial intelligence robots, edge detection equipment, and A I application scenario Leetop_ ALP_ 681 provides a fast passive heat dissipation design that can meet seismic and anti-static requirements Industrial standards. Meanwhile, Leetop_ ALP_ 681 interface is rich and cost-effective.
産品規格 Product specification：
處理器模块 Processor module：
| specifications | ||
| Module | Jetson AGXOrin 32GB | Jetson AGX Orin 64GB |
| AI Performance | 200 TOPS | 275 TOPS |
| CPU | 1792-core NVIDIA Ampere GPU with56 Tensor Core | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| GPU | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU2MB L2 + 4MB L3 | 12-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 3MB L2 + 6MB L3 |
| Memory | 32 GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 | |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) | 2x 4K60 (H.265) 4x 4K30 (H.265) 8x 1080p60 (H.265) 16x 1080p30 (H.265 |
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | 1x 8K30 (H.265) 3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1080p60 (H.265) 22x 1080p30 (H.265) |
| Powerv | 15W - 40W | 15W - 60W |
産品規格 Product specification：
| Interface | Specification |
| Network | 1x Gigabit Ethernet(10/100/1000) |
| 1x10G | |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0+3.0 Type C |
| Video output | 1 × HDMI |
| Audio | 1 x Audio |
| 20PIN IO CON | 20PIN Multifunction |
| SIM_Card | 1xSIM_Card |
| TF_Card | 1xTF_Card |
| GMSL | 1xGMSL |
| Function key | 1x Power key; 1xRecovery key ; 1xReset key; |
| Project | Spec |
| Input Voltage | +12(16A)---+36V(140W) DC Input |
| Load capacity | Above 90W |
| Dimensions (W×D ×H) | 221x166x62(mm) |
| Operating Temperature | -25℃-65℃ |
| Storage Temperature/Humidity | -25℃-65℃/10% -90% non condensation environment |
| Weight | 1.06595KG |
尺寸示意图：
Schematic diagram of dimensions：

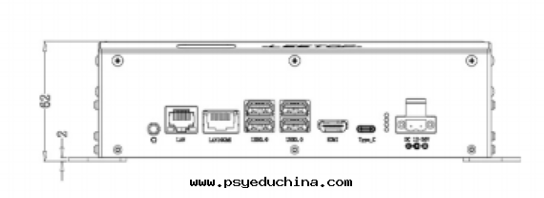

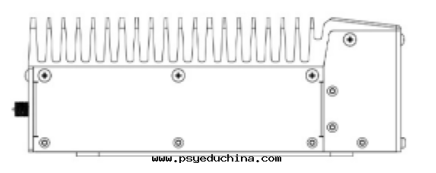

| 正视图 Front view | 左视图 Left view |
 |  |

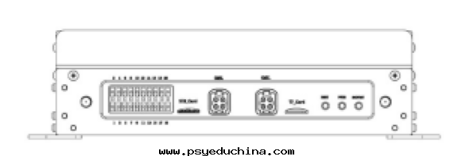

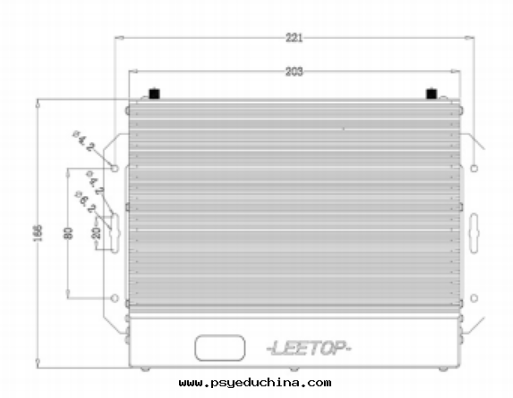

| 俯视图 Up view | 後 视 图 Rear view |
 |  |
森雲相机适配清單
| 序号 | 型号 | 接口 | 描述 |
| 1 | SG3-AR0341C-G2F-XXXH(196) | GMSL2 | 1920 x 1536 @ 60 fps |
| 2 | SG8-AR0820C-G2A-XXXH | GMSL2 | 3840 x 2160 @ 30 fps |
| 3 | SG8S-AR0820C-5300-G2A-XXXH | GMSL2 | 3840 x 2160 @ 30 fps |
| 4 | SG8S-AR0820C-5300-G3A-XXXH | GMSL3 | 3840 x 2160 @ 19 fps |
| 5 | SG2S-OX03CC-G2F-XXXH(060H/99H) | GMSL2 | 1920 x 1080 @ 60 fps |
| 6 | SG8-OX08BC-5300-GMSL2-XXXH(030/060/120) | GMSL2 | 3840 x 2160 @ 30 fps |
| 7 | SG8-OX08DC-G2A-XXXH | GMSL2 | 3840 x 2160 @ 45 fps |
| 8 | SG2-IMX390C-5200-G2A-XXXH | GMSL2 | 1937 x 1217 @ 30 fps |
| 9 | SG5-IMX490C-5300-GMSL2-XXXH | GMSL2 | 2880 x 1860 @ 30 fps |
| 10 | SG3S-IMX623C-G2F-XXXH( | GMSL2 | 1936 x 1556 @ 60 fps |
| 11 | SG8-IMX728C-880-G2G-XXXH | GMSL2 | 3840 x 2160 @ 30 fps |
| 12 | SG8-IMX728C-G3A-XXXH | GMSL3 | 3840 x 2160 @ 30 fps |
| 13 | SG17-IMX735C-G3A-XXXH | GMSL3 | 3000 x 5760 @ 45 fps |
| 14 | SG3S-ISX031C-GMSL2-XXXH | GMSL2 | 1920 x 1536 @ 30 fps |
| 15 | SG3S-OX03JC-G2F-XXXH | GMSL2 | 1920 x 1536 @ 30 fps |
| 16 | SG3-3B6C-G2F-XXXH | GMSL2 | 1920 x 1536 @ 60 fps |
| 17 | SG8-1H1C-G2A-XXXH | GMSL2 | 3840 x 2160 @ 30 fps |
猎豹相机适配清單
| 序号 | 型号 | 接口 | 描述 |
| 1 | LI-AR0231-GMSL2-XXXH(60/120/200) | GMSL2 | 1928 x 1208 @ 30 fps |
| 2 | LI-AR0231-GMSL2-CFM-176H-000 | GMSL2 | 1920 x 1200 @ 26 fps |
| 3 | LI-AR0231-AP0200-GMSL2-XXXH(60/120/200) | GMSL2 | 1920 x 1536 @ 28.7 fps |
| 4 | LI-AR0233-GMSL3-130H | GMSL3 | 2048 x 1280 @ 45 fps |
| 5 | LI-AR0233-GMSL2-XXXH(030/065/130) | GMSL2 | 2048 x 1280 @ XX fps |
| 6 | LI-AR0234CS-ST100-GM2C-120H | GMSL2 | 1920 x 1200 @ 60 fps |
| 7 | LI-AR0234CS-STEREO-GMSL2-30 | GMSL2 | 1920 x 1200 @ 60 fps |
| 8 | LI-AR0234CS-GMSL2-OWL | GMSL2 | 1920 x 1200 @ 120 fps |
| 9 | LI-AR0234CS-YUV-GMSL2 | GMSL2 | 1920 x 1200 @ 30 fps |
| 10 | LI-AR0239-GW5400-GMSL2-XXXH(137/200) | GMSL2 | 1920 x 1080 @ 30 fps |
| 11 | LI-AR0341-GM2B-XXXH(124/187) | GMSL2 | 1920 x 1536 @ 60 fps |
| 12 | LI-AR0521C-GMSL2-086H | GMSL2 | 2592 x 1944 @ 30 fps |
| 13 | LI-AR0820-GMSL3-XXXH(110/120) | GMSL3 | 3840 x 2160 @ 30 fps |
| 14 | LI-AR0821C-GMSL2-XXXH(060/120) | GMSL2 | 3840 x 2160 @ 30 fps |
| 15 | LI-AR0823-GM2B-120H | GMSL2 | 3840 x 2160 @ 40 fps |
| 16 | LI-AR0823-GMSL3-XXXH(030/060/120) | GMSL3 | 3840 x 2160 @ 19 fps |
| 17 | LI-AR2020-GM2B-096H | GMSL2 | 5120 x 3840 @ 8 fps |
| 18 | LI-AR2020-GMSL3-096H | GMSL3 | 5120 x 3840 @ 30 fps |
| 19 | LI-OX03A10-GMSL2-077H | GMSL2 | 1920 x 1280 @ 30 fps |
| 20 | LI-VENUS-OX03F10-OAX40-GM2A-118H | GMSL2 | 1920 x 1536 @ 60 fps |
| 21 | LI-VENUS-OX03F10-96717-XXXH(028/060H/120H/1 | GMSL2 | 1920 x 1536 @ 60 fps |
| 22 | LI-OX12A10-GM2B-XXXH(028/120) | GMSL2 | 4624 x 2604 @ 10 fps |
| 23 | LI-OX05B1S-VCSEL-OMS-96717-200H | GMSL2 | 2592 x 1944 @ XX fps |
| 24 | LI-OX08A4Y-GMSL2-120H | GMSL2 | 3840 x 2160 @ 36 fps |
| 25 | LI-LEO-OX08B40-OAX40-GM2A-XXXH(030/060/120) | GMSL2 | 3840 x 2160 @ 30 fps |
| 26 | LI-VENUS-OX08B40-96717-XXXH(030/060H/120) | GMSL2 | 3840 x 2160 @ 36 fps |
| 27 | LI-OX08D10-GM2B-120H | GMSL2 | 3840 x 2160 @ 45 fps |
| 28 | LI-IMX390-GMSL2-XXXH(60/120/200) | GMSL2 | 1937 x 1217 @ 30 fps |
| 29 | LI-IMX390-GW5400-GMSL2-XXXH(040/120) | GMSL2 | 1920 x 1080 @ XX fps |
| 30 | LI-IMX412-GMSL2-067H | GMSL2 | 4056 x 3040 @ XX fps |
| 31 | LI-IMX424-GMSL2-XXXH(040/065/120) | GMSL2 | 3849 x 1929 @ XX fps |
| 32 | LI-IMX490-GMSL2-XXXH(030/040/065/090) | GMSL2 | 2880 x 1860 @ XX fps |
| 33 | LI-IMX490-GW5400-GMSL2-120H | GMSL2 | 2880 x 1860 @ XX fps |
| 34 | LI-IMX490-NVP2670-GMSL2-120H | GMSL2 | 2848 x 1772 @ 30 fps |
| 35 | LI-IMX530-GMSL2-NL | GMSL2 | 5312 x 4608 @ 14.7 fps |
| 36 | LI-IMX565-GMSL2-NL | GMSL2 | 4128 x 3008 @ 30 fps |
| 37 | LI-VENUS-IMX623-GMSL2-XXXH(060/195/118) | GMSL2 | 1936 x 1556 @ 60 fps |
| 38 | LI-IMX728-GM2B-XXXH(030/070) | GMSL2 | 3857 x 2177 @ 45 fps |
| 39 | LI-IMX728-GMSL3-070H | GMSL3 | 3857 x 2177 @ 45 fps |
| 40 | LI-IMX728-GM2B-120H-DSL | GMSL2 | 3856 x 2176 @ 30 fps |
| 41 | LI-IMX728-9295-XXXH(030/070/120) | GMSL2 | 3857 x 2177 @ 45 fps |
| 42 | LI-ISX019-GMSL2-111H | GMSL2 | 1280 x 960 @ 30 fps |
| 43 | LI-VENUS-ISX021-GMSL2-XXXH(060/118H/195) | GMSL2 | 1920 x 1280 @ 30 fps |
| 44 | LI-VENUS-ISX031-GMSL2-030H | GMSL2 | 1920 x 1536 @ 30 fps |
| 45 | LI-VENUS-ISX031-GM2B-195H | GMSL2 | 1920 x 1536 @ 30 fps |
| 46 | LI-OV10640-GMSL2-060H | GMSL2 | 1280 x 1080 @ XX fps |
| 47 | LI-OV10650-495-GMSL2-XXXH(060/120) | GMSL2 | 1824 x 940 @ XX fps |
| 48 | LI-OV2311-VCSEL-GMSL2-055H | GMSL2 | 1600 x 1300 @ XX fps |
| 49 | LI-OV2312-VCSEL-OMS-GMSL2-177H | GMSL2 | 1600 x 1300 @ XX fps |
| 50 | LI-OV2775-GMSL2-XXXH(056/113/200) | GMSL2 | 1920 x 1080 @ XX fps |
| 51 | LI-VENUS-SC120AT-GMSL2-XXXH(115/196) | GMSL2 | 1288 x 968 @ 30 fps |
| 52 | LI-ST-VG1762-RGBIR-OMS/DMS | GMSL2 | 1944 x 1204 @ XX fps |
| 53 | LI-ST-VG5761-MONO-DMS-T | GMSL2 | 1944 x 1204 @ XX fps |
| 54 | LI-KW33000-GMSL2-TOF-088H-1M | GMSL2 | 640 x 480 @ XX fps |
| 55 | LI-S5K2G1-GMSL2-120H | GMSL2 | 3840 x 1920 @ XX fps |
瀝拓相机适配清單
| 序号 | 型号 | 接口 | 描述 |
| 1 | ALC-IMX219C-M1 | MIPI | 3280 x 2464 @ 21 fps |
| 2 | ALC-IMX577C-M1 | MIPI | 3840 x 2160 @ 60 fps |
| 3 | ALC-IMX577C-M2 | MIPI | 3840 x 2160 @ 60 fps |
| 4 | ALC-ISX031C-G2 | GMSL2 | 1920 x 1536 @ 30 fps |
| 5 | ALC-OX03J10C-M1 | MIPI | 1920 x 1536 @ 30 fps |
| 6 | ALC-OX08BC-G2 | GMSL2 | 3840 x 2160 @ 30 fps |
| 7 | ALC-IMX490C-G2(IMX490RGGBE35CA) | GMSL2 | 2880 x 1860 @ 30 fps |
