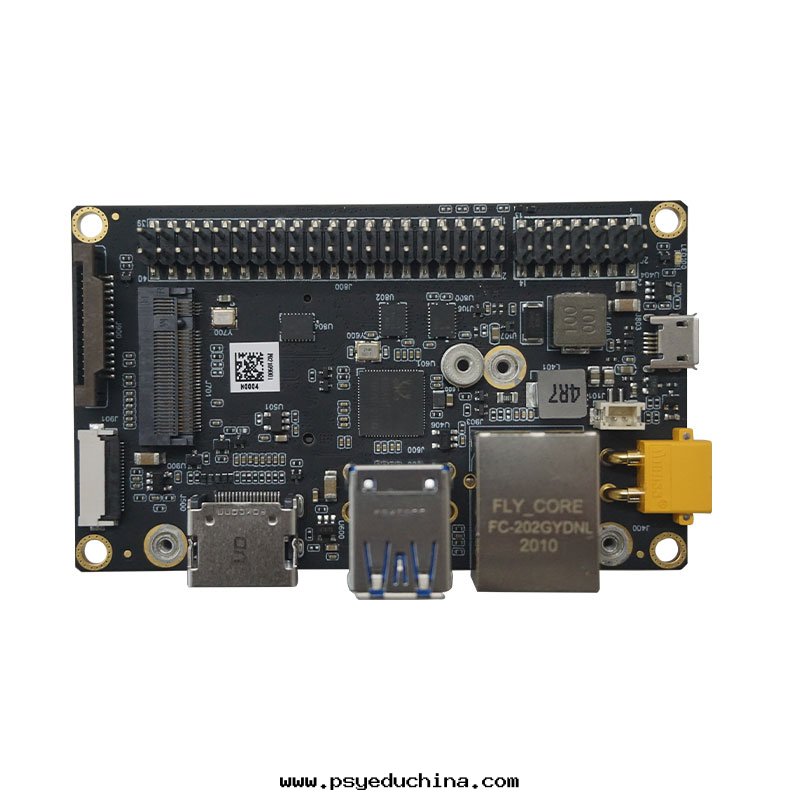

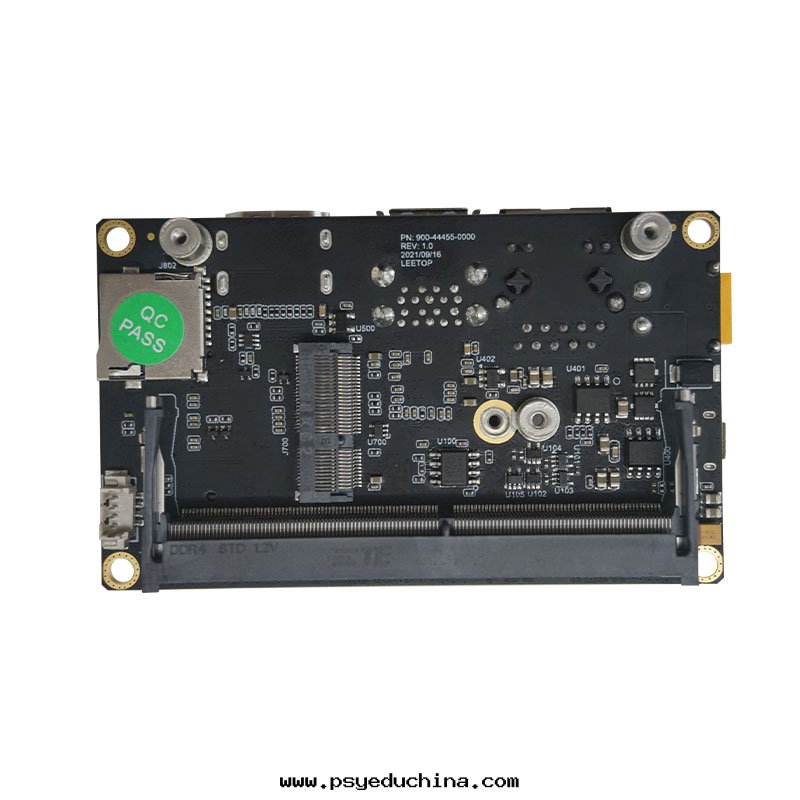

Leetop-A203 is an embedded artificial intelligence computer that can endow many terminal devices with up to 21TOPS (INT8) computing power. Leetop-203 provides fast passive heat dissipation design, which can meet industrial standards such as shock resistance and anti-static. At the same time, the Leetop-203 interface is rich and cost-effective.
Leetop-A203 is an embedded artificial intelligence computer that can endow many terminal devices with up to 21TOPS (INT8) computing power. Leetop-203 provides fast passive heat dissipation design, which can meet industrial standards such as shock resistance and anti-static. At the same time, the Leetop-203 interface is rich and cost-effective.
Interface
Feature | Carrier for NVIDIA Jetson XAVIER NX/Nano / ORIN NX |
Network | 1 x Gigabit Ethernet Connector (10/100/1000) |
Video Output | 1 x HDMI 2.0 (TYPE A) |
USB | 2x USB 3.0 Type A (Integrated USB 2.0)/1x USB 3.0/USB 2.0 Micro-AB |
M.2 KEY E PCIE | 1x PCIE 2242 SIZE |
M.2 KEY M | 1x M.2 KEY M (NVMe SSD) |
Serial | 1x CAN |
Camera | 6 x Camera (CSI 2 Lane) |
Misc | 1x System Control 1x POWER Control 2x I2C Link（+3.3V I/O） 1x UART(+3.3V Level) 1X SPI Bus(+3.3V Level) 2x GPIO(+3.3V Level) 1x LED STATE |
Power Requirements | +13---+19V DC Input @ 8A |
