産品簡介 Product Introduction
Leetop-A607是基于英伟达 Orin NX 核心板研發的一款嵌入式人工智能计算机，是一 个高性能，接口豐富的NVIDIA Jetson Orin Nx载板。能夠为衆多終端設備賦予高达 70/100TOPS(INT8)的计算力。同时A607载板提供快速的主动/被动散热設计，可以滿足抗 震防静電等工業标準，载板還提供了豐富的外围接口。

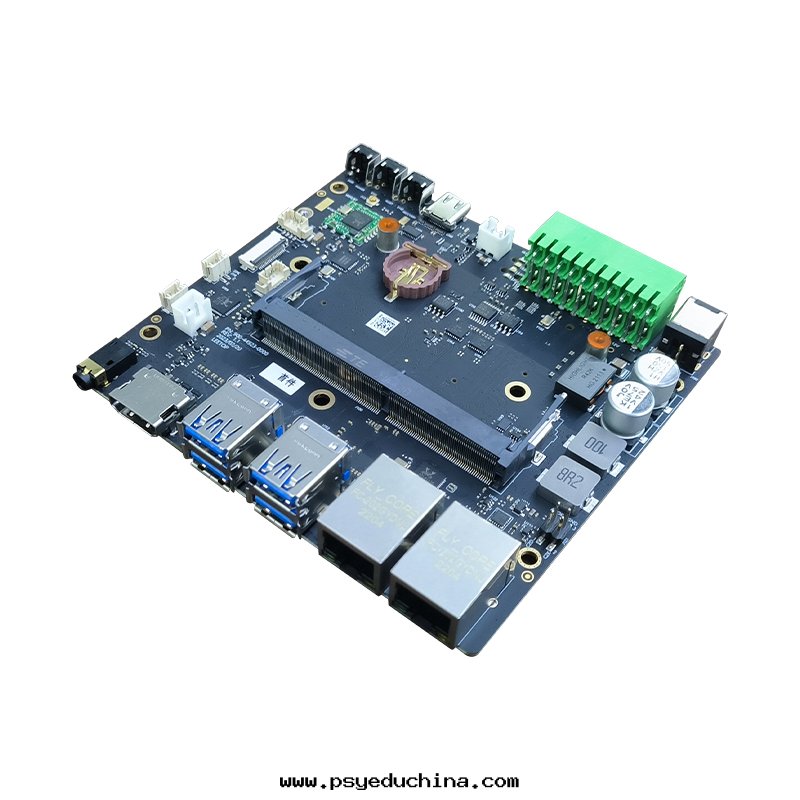

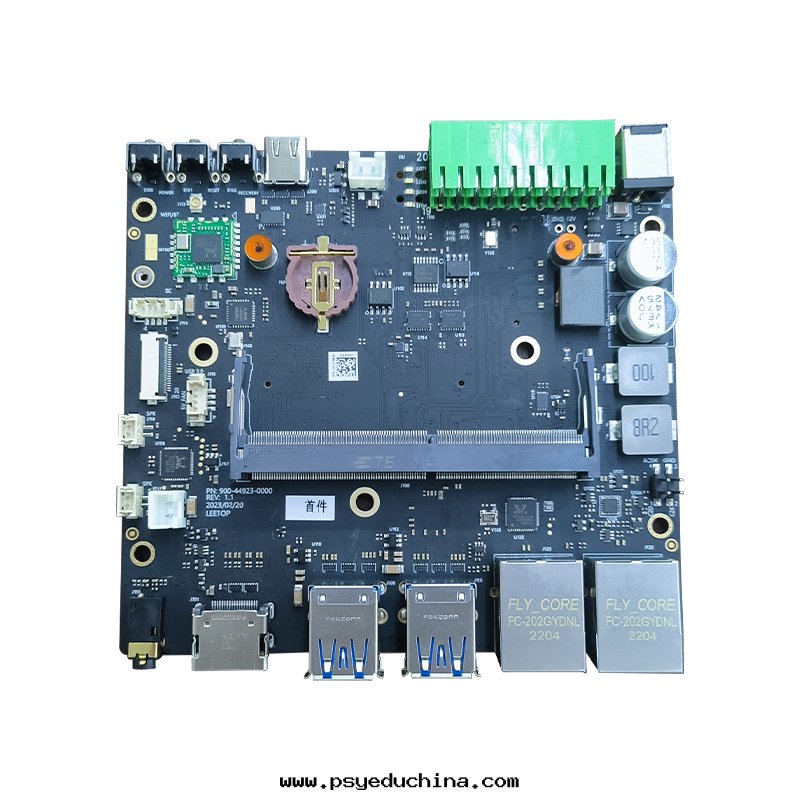

Leetop-A607 is an embedded artificial intelligence computer based on NVIDIA Orin NX core board. It is a high-performance NVIDIA Jetson Orin Nx carrier board with rich interfaces. Capable of delivering up to 70/100TOPS(INT8) of computing power to a wide range of end devices. At the same time, A607 carrier board provides fast active/passive heat dissipation design, which can meet industrial standards such as seismic and anti-static. The carrier board also provides a variety of peripheral interfaces.
産品規格 Product Specifications
處理器模组 Processor module
| specifications | ||
| Module | Nvidia Jetson Orin NX 8GB | Nvidia Jetson Orin NX 16GB |
| AI Performance | 70 TOPS | 100 TOPS |
| CPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| GPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64- bit CPU 2MB L2 + 4MB L3 |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | — (Supports external NVMe) |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Power | 10W - 20W | 10W - 25W |
接口 I/O interface
| 接口 interface | 規格/Specifications |
| DC | 電源接口 Power supply interface |
| Display | 1 x HDMI |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0+3.0 Type C |
| Network | 2x Gigabit Ethernet (10/100/1000) |
| CAN | 1 x CAN，1 CAN (接，收發器) |
| FAN | 1 x FAN（5V PWM） |
| Camera | 120P攝像头接口 |
| USB 2.0+3.0 | ZIF 20P 0.5mm pitch |
| M.2 KEY M | 1x M.2 KEY M Interface |
| Misc. | 2x I2C Link（+3.3V I/O） 1X SPI Bus(+3.3V Level) 4x LED STATE |
| Function Key | 1× Power KEY, 1× Reset KEY, 1× Recovery KEY （Button） |
供 電 Power Supply
| Power Supply | Spec |
| Input Voltage | Wide input 12(7A)- 36V(3A) DC |
| Power consumption | up to 70W |
結 構 Mechanical
| Mechanical | Spec |
| Dimensions (LxW) | 115 x 105（mm） |
| Weight | 114g |
环 境 Enviromental
| Environmental | Spec |
| Operating Temperature | -25℃-75℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Storage Humidity | 10%-90% non-condensing |
