Product features
Product function
産品簡介：

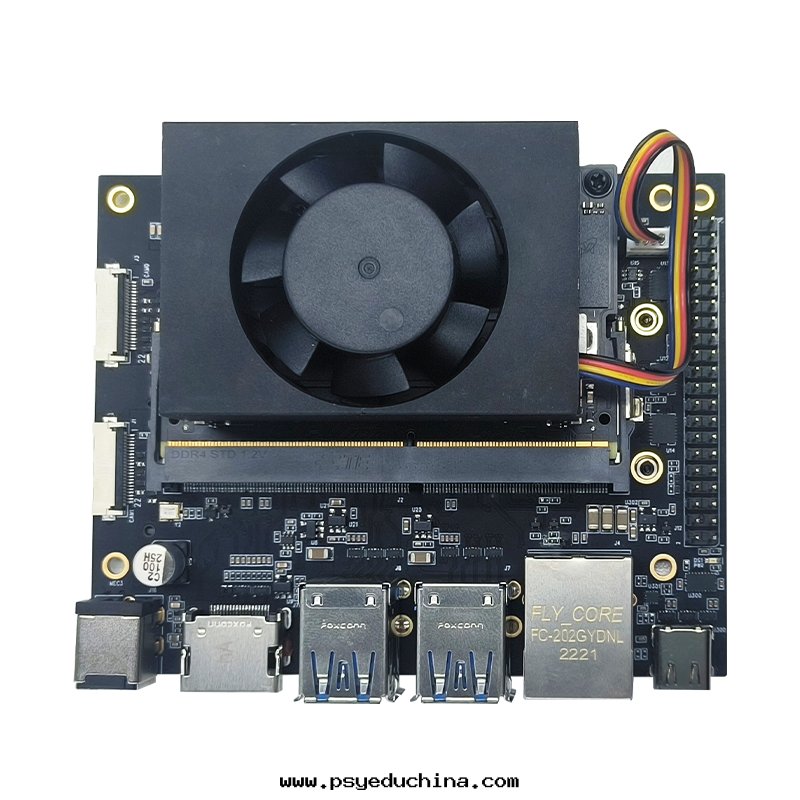

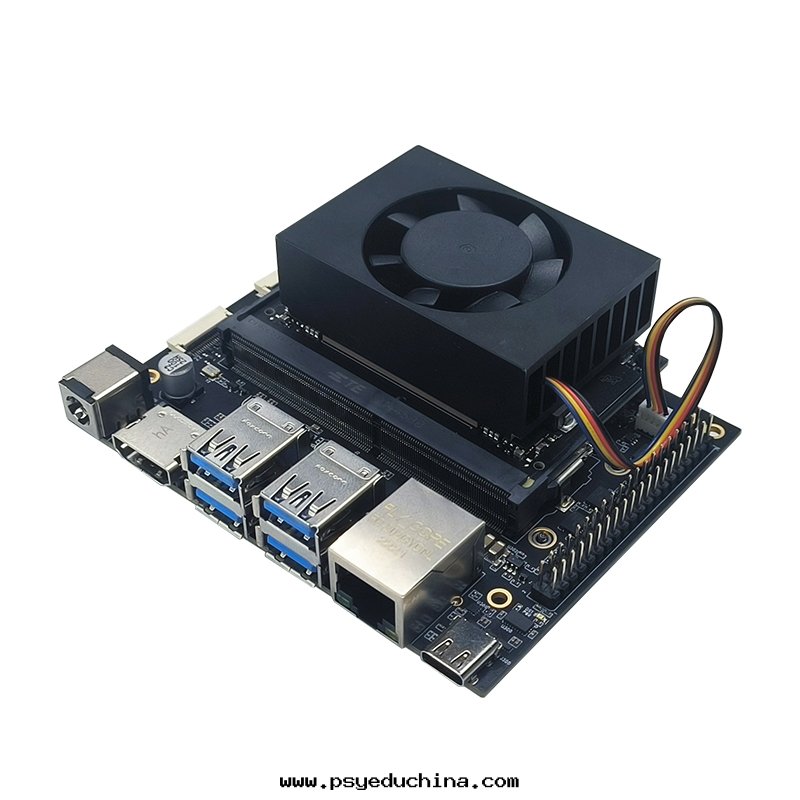

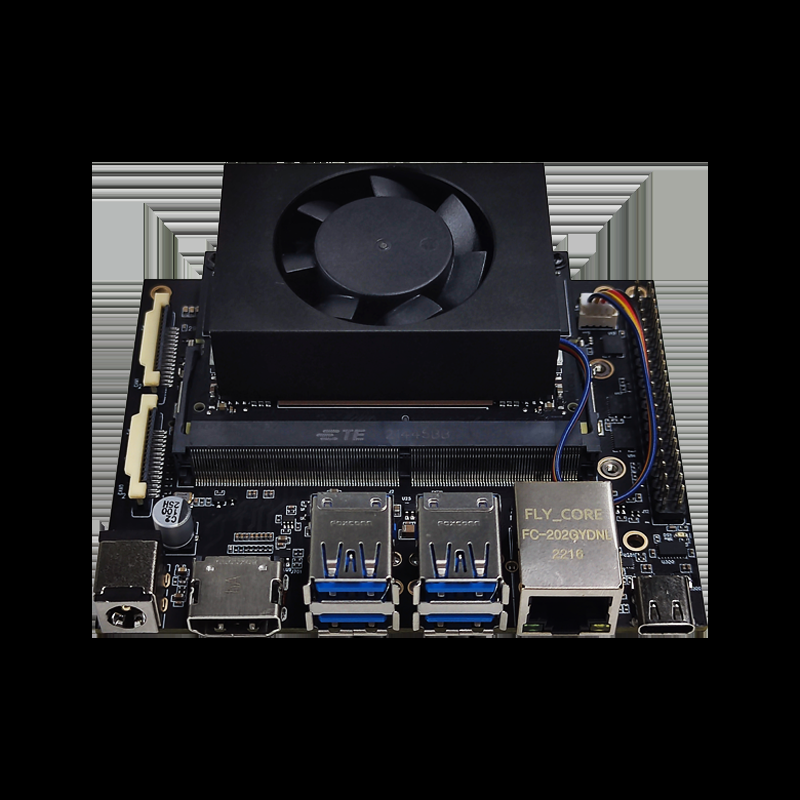

Leetop_SUBKIT_Orin_Nano是基于英伟达Orin Nano核心板研發的一款嵌入式人工智能计算机，能夠为衆多終端設備賦予高达20/40TOPS的计算力。Leetop SUBKIT_Orin_Nano提供快速的主动散热設计，可以滿足抗震防静電等工業标準。同时Leetop_SUBKIT_Orin Nano接口豐富，性價比高。
Leetop_SUBKIT_Orin_Nano is anembedded artificialintelligence computer based on NVIDIA Orin Nano core boardwhich can provide up to 20/40TOPS computing power to manyterminal devices. Leetop_SUBKIT_Orin_Nano provides fast andactive heat dissipation design, which can meet industrystandards such as anti-shock and anti-static. At the same time,Leetop_SUBKIT_Orin Nano has rich interfaces and high costperformance.
産品規格：
處理器模块：
| Jetson Orin Nano 4GB | Nano 4GB Jetson Orin Nano 8GB | |
| AI Performance | 20 TOPS | 40 TOPS |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | |
| Video Encode | 1080p30 supported by 1-2 CPU cores | |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | |
| Memory | 4GB 64-bit LPDDR5 34 GB/s | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | — (Supports external NVMe) | |
接口I/O：
| 接口 Interface | 規格 Specification |
| Network | 1 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 3x USB 3.0 Type A (Integrated USB 2.0) 1x USB 3.2 Type A 1x USB 2.0 +3.2Type C |
| Video output | 1 × HDMI |
| CAN | 1 × CAN 1CAN（接.收發器） |
| SPI Bus | 1 × SPI Bus(+3.3V Level) |
| Camera | CSI 2 line |
| M.2 KEY E | 1x M.2 KEY E Interface |
| M.2 KEY M | 1x M.2KEY M |
| FAN | 1XFAN(5V PWM) |
| Power | +9--+20V DC Input@7A |
供電 Power Supply：
| Power Supply | Spec |
| Input Voltage | +9--+20V DC Input@7A |
| Power consumption | 60W |
結構 Mechanical：
| Mechanical | Spec |
| Dimensions (W×D ×H) | 100×80.6×33.4(mm) |
| Weight | 0.179KG |
环境 Environmental：
| Environmental | Spec |
| Operating Temperature | -25℃-75℃ |
| Storage Humidity | 10%-90% non-condensing 非結露环境 |
尺寸示意图Schematic diagram of dimensions：

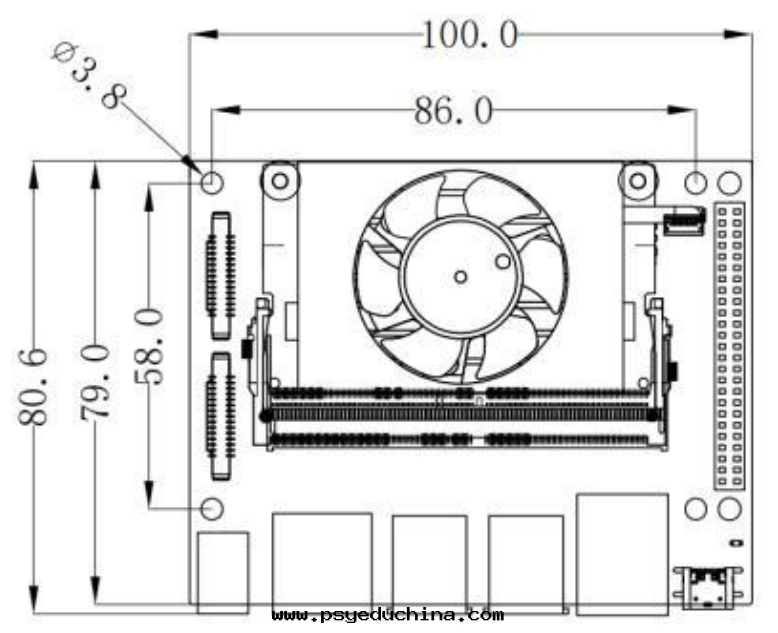

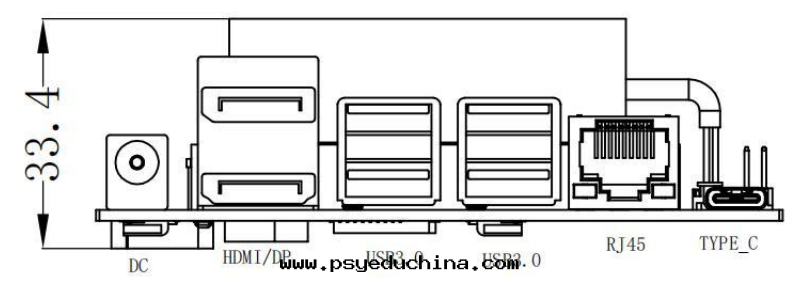

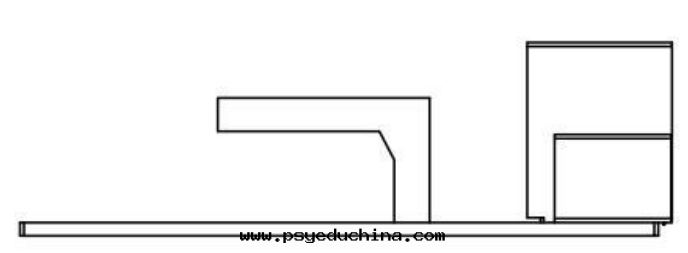

| 正视图 Front view | 左视图 Left view |
 |  |

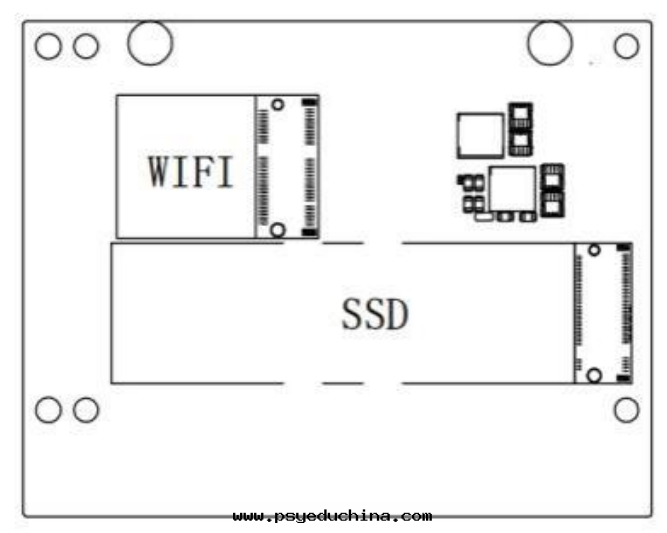

| 俯视图 Up view | 底部图 Bottom view |
 |  |
