産品簡介：
Leetop_ALP603是基于英伟达Orin NX核心板研發的一款嵌入式人工智能计算机，能夠为衆多終端設備賦予高达70/100TOPS的计算力LeetopALP603提供快速的主动散热設计，可以滿足抗震防静電等工業标準。同时Leetop_ALP603接口豐富，性價比高。
Leetop_ALP603 is an embedded Al computer based onNvidia's Orin NX core board, enabling computing power up to70/100TOPS for a wide range of terminal devices.Leetop_ALP603 provides fast active cooling design to meetindustry standards such as earthquake resistance and anti-static.At the same time, Leetop_ALP603 has abundant interfaces andhigh cost performance.
産品規格：
處理器模块：
| Jetson Orin NX 8GB | Jetson Orin NX 16GB | |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) | |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s | 16 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | — (Supports external NVMe) | |
接口I/O：
| 接口 Interface | 規格 Specification |
| Network | 1 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 2x USB 3.0 Type A (Integrated USB 2.0) 1x USB 3.0 0.5mm pitch 20P ZIF 1x USB 2.0 Micro-AB |
| Video output | 1 × HDMI |
| CAN | 1 × CAN |
| SPI Bus | 1 × SPI Bus(+3.3V Level) |
| power | +9V to +20V DC Input @ 7A |
供電 Power Supply：
| Power Supply | Spec |
| Input Voltage | +9--+20V DC Input @7A |
| power consumption | Above 60W |
結構 Mechanical：
| Mechanical | Spec |
| Dimensions (W×D ×H) | 108.4x95.4x50.5(mm) |
| Weight | 465g |
环境 Environmental：
| Environmental | Spec |
| Operating Temperature | -25℃-65℃ 0.2~0.3m/s气流 |
| Storage Temperature | -20℃-60℃ |
| Storage Humidity | 10%-90% non-condensing 非結露环境 |

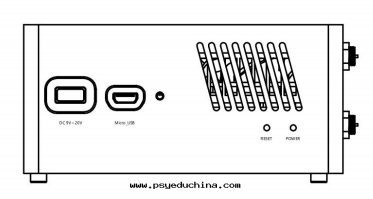

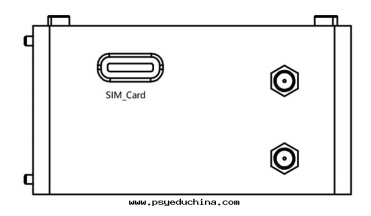

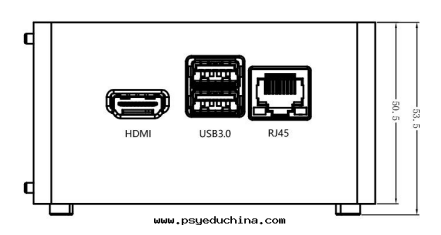

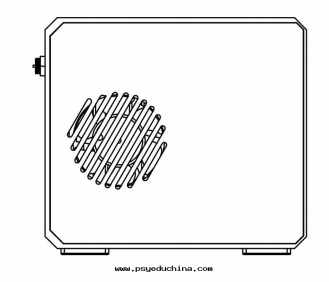

尺寸示意图 Schematic diagram of dimensions：
| 正视图 Front view | 左视图 Left view |
 |  |
| 俯视图 Up view | 後视图 Rear view |
 |  |
