Product features
Product function
産品簡介：

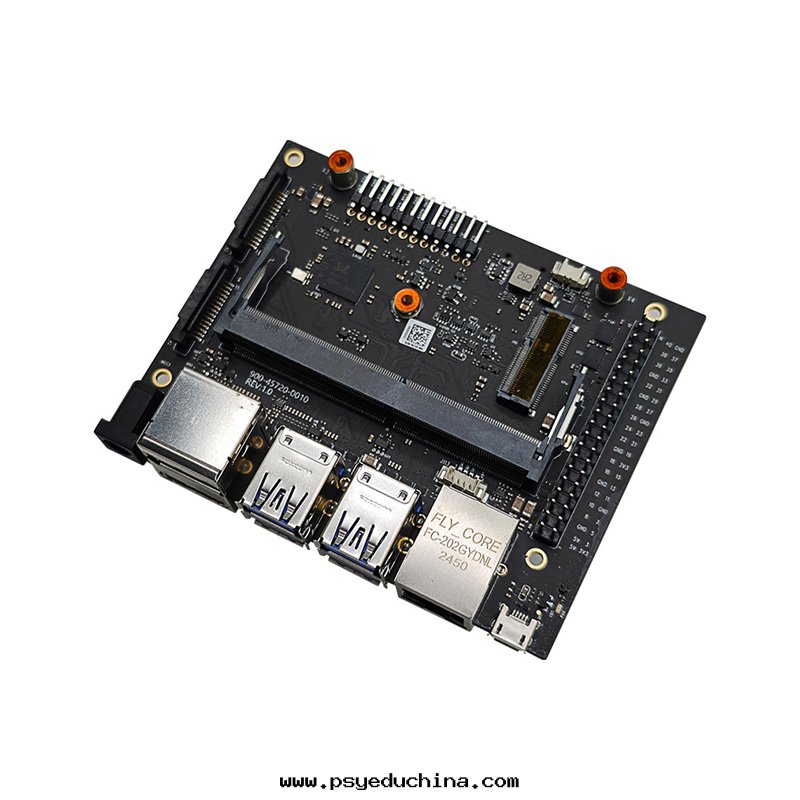

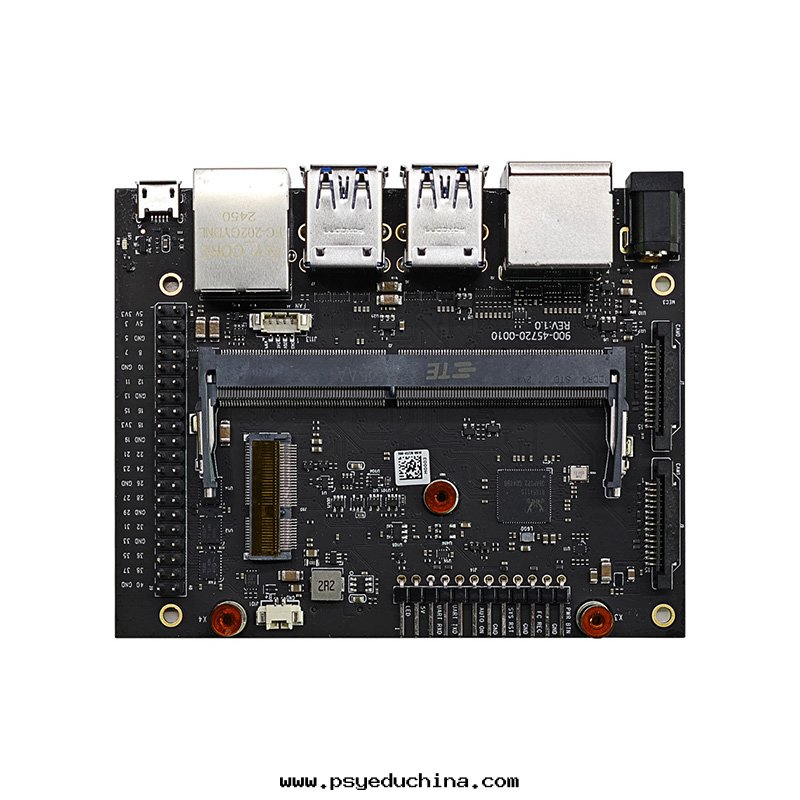

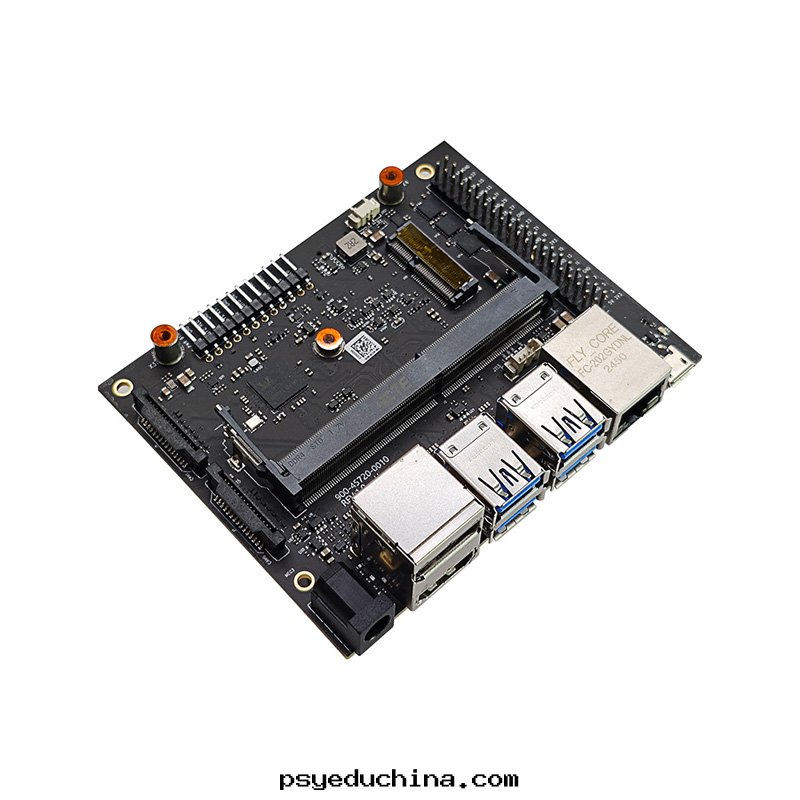

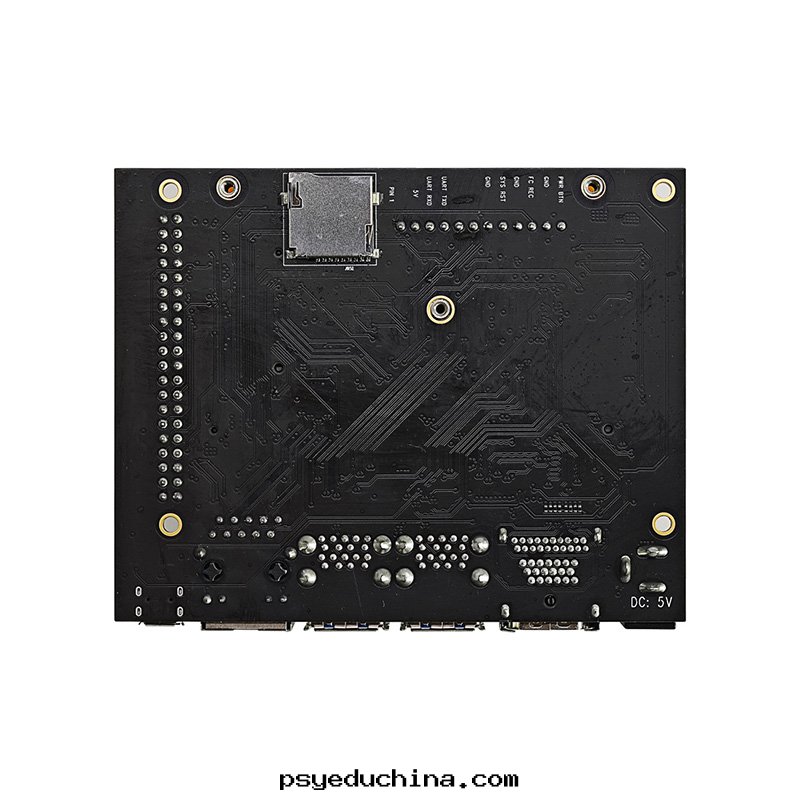

Leetop-A216 是一款基于英伟达 Jetson Nano 模組研發的高性能、功能豐富的载闆。其設計賦予 終端設備高达 472 GFLOPS 的強大算力，具有紧 湊、工業級設計，适用于智能安防、工業自動化、 機器人、AI 邊緣推理等多種應用场景。底闆集成了 豐富的外設接口，具備強大的扩展能力，助力用戶 快速搭建 AI 系統，縮短開發周期。
産品規格：
處理器模块
| Jetson Nano | |
| AI Performance | 472 GFLOPS |
| GPU | 128-core NVIDIA Maxwell™ architecture GPU |
| CPU | Quad-Core Arm® Cortex®-A57 MPCore processor |
| Video Encode | 1x 4K30 (H.265) 2x 1080p60 (H.265) |
| Video Decode | 1x 4K60 (H.265) 4x 1080p60 (H.265) |
| Memory | 4GB 64-bit LPDDR4 25.6GB/s" |
| Storage | 16GB eMMC 5.1† |
| CSI Camera | Up to 4 cameras 12 lanes MIPI CSI-2D-PHY 1.1 (up to 18 Gbps) |
| PCIE* | 1 x4 (PCIe Gen2) |
| Networking* | 1x GbE |
| Power | 5W - 10W |
規格：
| Project | Specification |
| Module Compatibilit | Jetson Nano |
| Display | 1x HDMI;1x DP |
| Ethernet | 1x Gigabit Ethernet (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) ; 1x USB 2.0Micro USB |
| WIFI/BT | 1x M.2 KEY E (SIZE:2230) interface |
| TF Card | 1xTF Card |
| Camera | 2x Camera |
| FAN | 1xFAN(5V PWM) |
| SPI Bus | 2x SPI Bus;1x I2S;6x GPIO;1x UART; 1x UART(DEBUG) ;2x I2C |
| DC | Power interface |
| Project | Specification |
| Input Voltage | +5~5.3V DC Input @ 4A |
| Load capacity | Above 45W |
| Dimensions (W×D ) | 100x79 (mm) |
| Operating Temperature | -25℃-70℃ |
| Storage Temperature Humidity | -25℃-65℃ 10% -90% Non condensation environment |
